Water Hammer Arrester
It eliminated the disadvantage of existing welding ways by developing no welding method.
As product had not been applied the heat so it prevents the hot creep of components and it reinforces the durability of components.
It is suitable for drinking water standard by acquiring the Sanitary safety standards certificate. (Adapter Ni-Cr plating)
It possesses inspection and examine equipment completely for charged pressure and leakage test and the result of inspection can be printed as computer graph.
Unification of Pipe-attached angle valve and connection components makes it easy to work in the narrow space.

  • AA-Insert type

    -

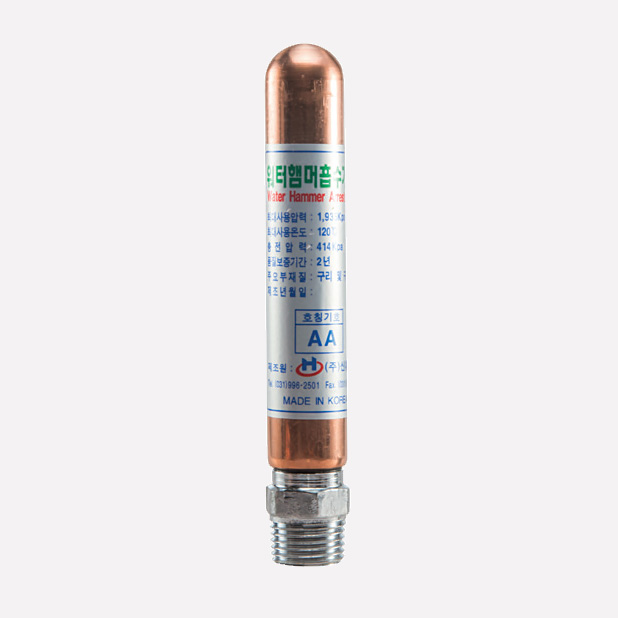

  • AA-Screw type

    -

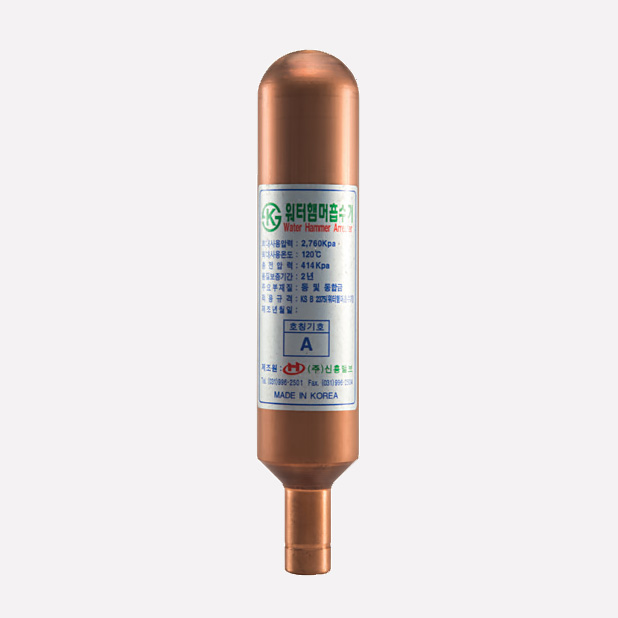

  • A-Insert type

    -

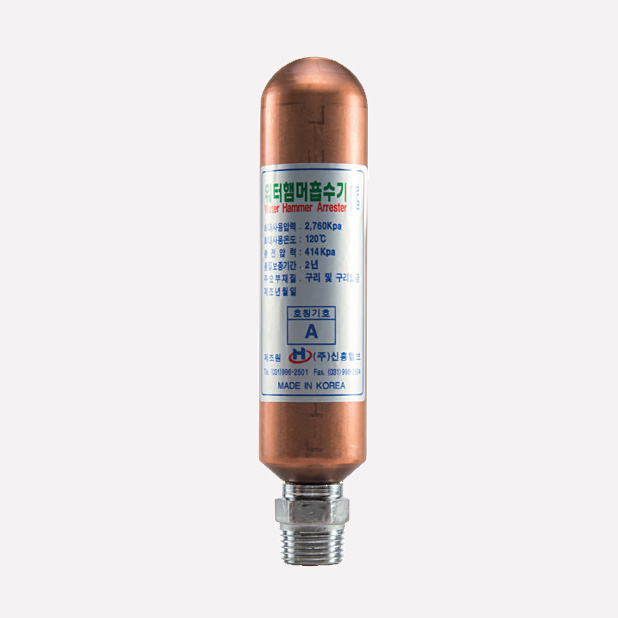

  • A-Screw type

    -

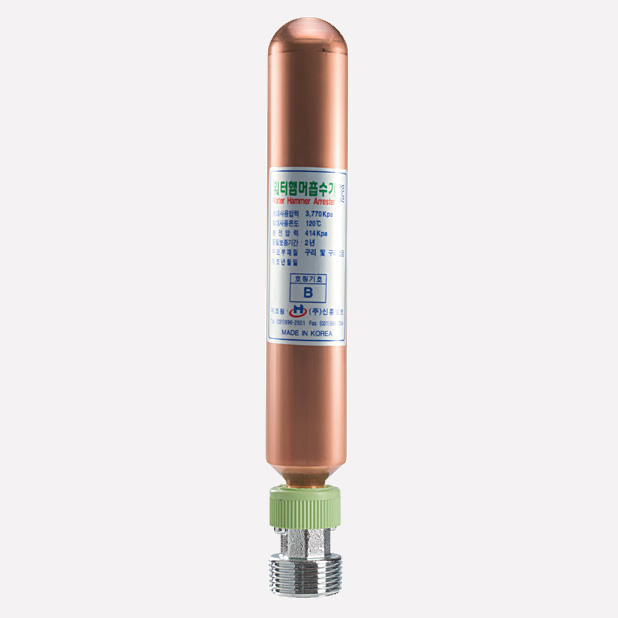

  • B-Screw type

    -

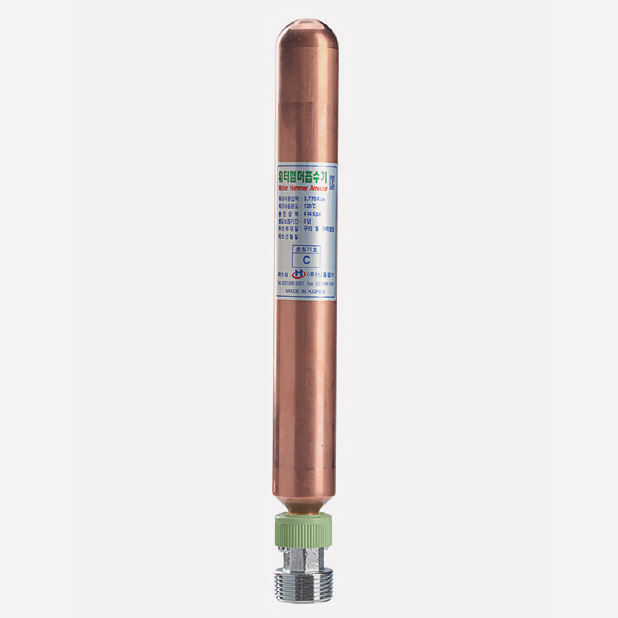

  • C-Screw type

    -
Dimension
Model SIZE A(mm) B(mm) C 체적 Water supply
fixture unit
SHW-AA 15A 148 22.2 1/2" 35 Below 4
SHW-A 15A 168 34.9 1/2" 116 Below 4~12
SHW-B 20A 228 34.9 3/4" 132 Below 12~33
SHW-C 25A 320 34.9 1" 208 Below 33~61
Specification
Model SHW-AA / SHW-A / SHW-B / SHW-C
Applied Fluid WATER
Applied Pressure MAX, 1935 kPa
Applied Temperature MAX. 120℃
Nitrogen
Rechargeable
Pressure		 414 KPa

Main
Material

 BODY COPPER , COPPER(Ni-Cr도금)
PISTON P.P
O-RING E. P. D. M.
ADAPTER BRASS (Ni-Cr Plating)
