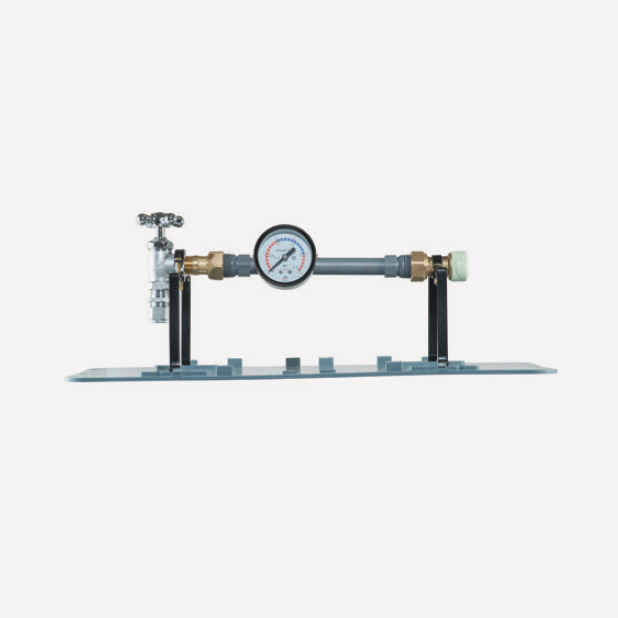

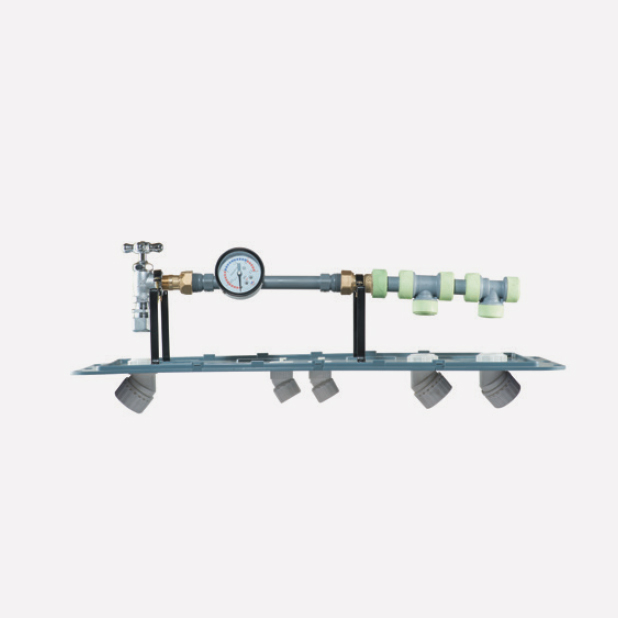

Multi Water Meter System
It is possible to reduce labor costs by convenient installation.
It minimizes a defect factor by connecting part
It eliminates the inconvenience of installation and repair by division of protection box.
It is easy to check pressure as water pressure test.
Lagging materials are optional.

  • Model 1

    -

  • Model 2

    -

  • Model 3

    -

  • Model 4

    -
Dimension
Model SIZE (L) x (W) x (H)
MMS-100 440 x 250 x 200
MMS-200 440 x 250 x 175
MMS-300 550 x 250 x 200
Specification
Model MMS-100, MMS-200, MMS-300
Applied Fluid Cold. Hot wat
Applied Pressure MAX - 1MPa

Main
Material

 Protection box ABS
Connection part PB, Copper pipe, Stainless pipe
Water pressure
connecting strands		 Nylon +G/F 30%
Elbow, Socket type BRASS

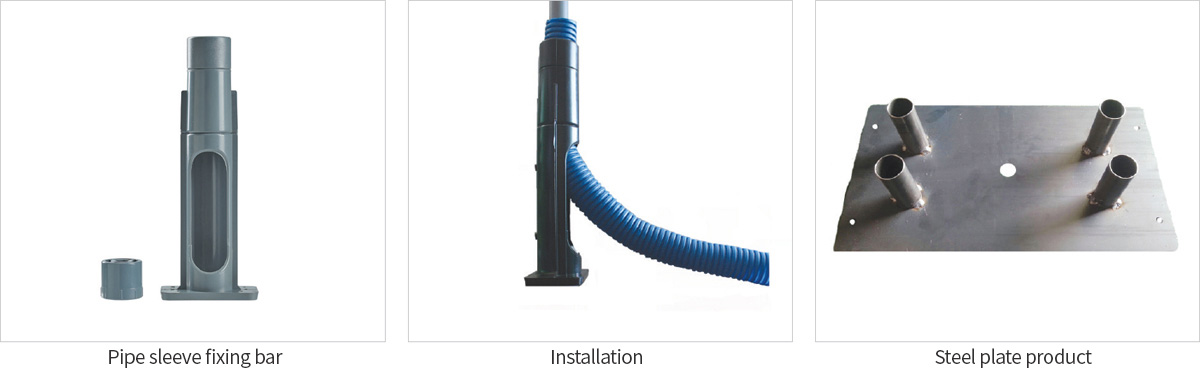

Plumbing Sleeve Fixed Board And Fixed Plate
It is a product that fixes the CD pipe at the desired location by pre-construct for set the meter pipe location more correctly in case of meter pipe places at the low plumbing.
